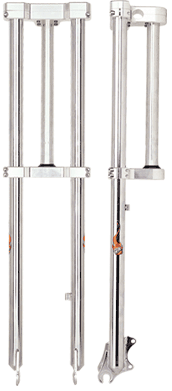

Triple Tree Forks

These forks are designed to accomodate a 26 Inch front wheel, but can be cut down for custom bicycle builds.

See diagrams here;

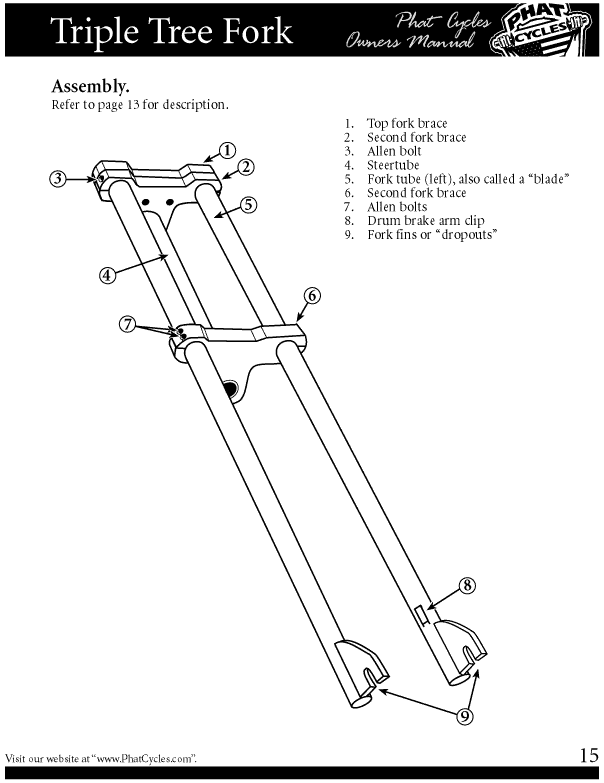

Triple Tree Fork Diagram for Assembly

See diagrams here;

Triple Tree Headset Diagram for Assembly

When the diagrams open, you can download them by rght clicking (PC) or clicking and holding (Mac) the image.
Specs:
Material 4130 Chromoly Steel Fork Tubes
Machined Aluminum Fork Braces
Finish Chrome
Sizes 28 1/4 Inches Long (from center of handlebar passthrough to center of axle.

Space between dropouts measures 4 15/16 Inches.

1 Inch diameter Steertube, will fit Into a 1 1/8 Inch headtube using an adaptive headset.

The Steertube can be cut to fit any size headtube length from 11 inches down to less than 3 Inches.
Extras Includes Disc Brake Mounts and a Tab for a Sachs Drum Brake.
PRICE $149.00
