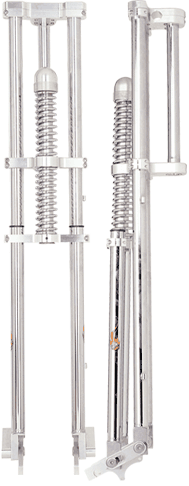

Phat Linkage Forks

These forks are designed to accomodate a 20 Inch front wheel.

See diagrams here;

Linkage Fork Diagram for Assembly

See diagrams here;

Linkage Headset Diagram for Assembly

When the diagrams open, you can download them by rght clicking (PC) or clicking and holding (Mac) the image.
Specs:
Material 4130 Chromoly Steel Fork Tubes
Machined Aluminum Fork Braces
Finish Chrome
Sizes 28 1/4 Inches Long (from center of handlebar passthrough to center of axle.

Space between dropouts measures 4 15/16 inches.

1 Inch diameter Steertube, will fit Into a 1 1/8 Inch Headtube using an adaptive headset.

The Steertube can be cut to fit any size headtube length from 11 inches down to less than 3 Inches.
Extras Includes Disc Brake Mounts and a Tab for a Sachs Drum Brake.
PRICE $349.00
BUY Contact Us
